LM Vintage 65' Vibrolux

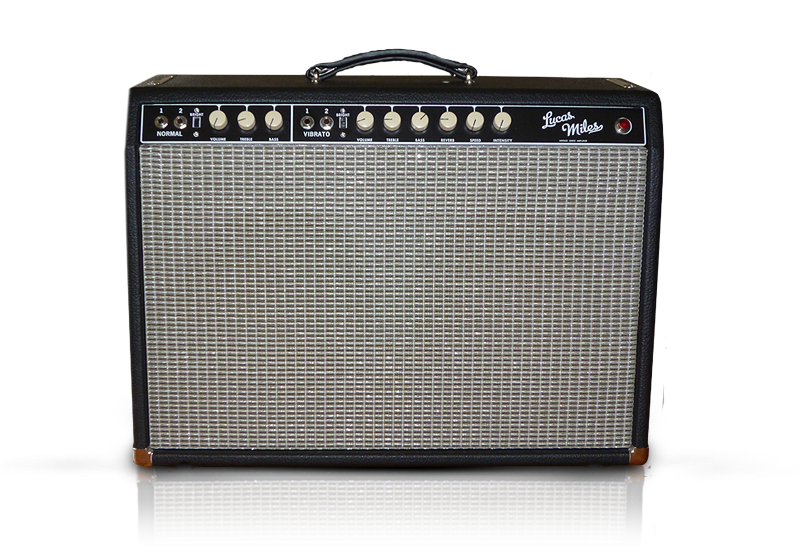

Lucas Miles Vintage 65’ Vibrolux Reverb


Modelled on the 65’ Blackface Vibrolux Reverb, this Lucas Miles Vintage Series amplifier faithfully replicates the sound of another of Leo Fender’s masterpieces.

Hand-wired t’out point to point with vintage style cotton sheath wiring for optimum signal transfer, with components laid out on fibreboards.The techniques used capture and faithfully create the beautiful vintage tone associated with vintage American amps.



To purchase or to view current build lead times goto Tube Audio LM 65' Vibrolux Reverb



Technical Specifications

• 40watts into 4 ohms.
• 2 x weber 10A125 30w speakers.
• carbon comp resistors t’out
• nos allan bradley 1w power resistors
• synergy royal blue coupling/tone capacitors
• sprague atom filter capacitors
• mercury magnetics output transformer.
• eh6L6GC o/p tubes
• jj, tungsol, eh preamp tubes.
• sovtek 5ar4
• switchcraft jacks t’out
• cabinet 18mm birch ply
• accutronics reverb tank
• amp weight 24 kg
• rrp. $3600
